  • Containerized mobile incinerator CA50

    Containerized mobile incinerator CA50

    The containerized mobile incinerator mounted in ISO container before leave factory, pre-installation, no incineration house build construction, movable by truck and ultraviolet lamp sterilization inside.

    HICLOVER is growing brand for environmental protection field, and market share with most of Africa, Middle East, Southeast Asia countries and part of North America, Europe territory. We are trusted partner for governmental organizations, non-profit organizations, international contractors, logistics organizations, military, pet cremation business owners, etc. We have export experience more than 40 countries, including war zone like Iraq, Afghanistan, Somalia, South Sudan.

    Model CA50
    Waste Treatment Waste Incineration Treatment
    Feed Capacity Average 100 kgs per feed
    Burning Rate Average 50 kgs per hour
    Burning Time per Feed Average 2 hour
    Control Mode PLC(Programmable Logic Controller Incinerator)
    Voltage 220V
    Power 0.7Kw
    Fuel Diesel oil
    Burner Italy Burner
    Feed Mode Manual
    Temperature Monitor Digital Display
    Fuel consumption (Oil) Average 16.6 Kgs/Hour
    Internal Dimensions 100x80x70cm (Primary Chamber)
    External Dimensions 230 x 130 x 155cm (main body)
    Waste combustion chamber 560Liters
    Post Combustion Chamber 280Liters
    Oil Tank Capacity 200 Liters
    Door Opening 70 x 50cm
    Chimney 5.0M
    Gross Weight 4500kgs
    Chamber Material Firebrick ,Refractory Concrete
    Max. Heat Value 166,000Kcal/Hr.
    Operation Technical Specifications
    Solid Chamber temperature 8000C -10000C
    Gas Chamber temperature 10000C -12000C
    Chamber Anti-Rate 14500C
    Residency time 2.0 Sec.
    Burning efficiency >98%
    Waste Lower Calorific Power 3000Kcal
  • Small Medical Incinerator TS100

    Small Medical Incinerator TS100

    We are china incinerator manufacturer, contractor and exporter. Manufacturer make reasonable price for incinerator customer, supply medical incinerator, hospital incinerator, animal incinerators, hog incinerators, pet cremation equipment, small incinerator, pet incinerator, animal incinerator, portable incinerator, small animal incinerator, infectious waste pyrolysis machine, laboratory incinerator. HICLOVER help customer reduce purchase budget, custom made function, quality products and friendly service.

    Items/Model TS100(PLC)
    Burn Rate (Average) 100 kg/hour
    Feed Capacity(Average) 200 kg
    Control Mode PLC
    Combustion Chamber 1200L
    Internal Dimensions 120x100x100cm
    Secondary Chamber 600L
    Smoke Filter Chamber Yes
    Feed Mode Manual
    Voltage 220V
    Power 0.7Kw
    Oil Consumption (kg/hour) 14–28
    Gas Consumption (m3/hour) 10–32.2
    Temperature Monitor Yes
    Temperature Protection Yes
    Oil Tank 200L
    Feed Door 80x60cm
    Chimney 10Meter
    Chimney Type Stainless Steel
    1st. Chamber Temperature 800℃–1000℃
    2nd. Chamber Temperature 1000℃-1200℃
    Residency Time 2.0 Sec.
    Gross Weight 6000kg
    External Dimensions 260x150x180cm
  • Small Medical Incinerator TS50

    Small Medical Incinerator TS50

    HICLOVER is growing brand for environmental protection field, and market share with most of Africa, Middle East, Southeast Asia countries and part of North America, Europe territory. We are trusted partner for governmental organizations, non-profit organizations, international contractors, logistics organizations, military, pet cremation business owners, etc. We have export experience more than 40 countries, including war zone like Iraq, Afghanistan, Somalia, South Sudan.

    Items/Model TS50(PLC)
    Burn Rate (Average) 50 kg/hour
    Feed Capacity(Average) 100kg
    Control Mode PLC
    Combustion Chamber 560L
    Internal Dimensions 100x80x70cm
    Secondary Chamber 280L
    Smoke Filter Chamber Yes
    Feed Mode Manual
    Voltage 220V
    Power 0.7Kw
    Oil Consumption (kg/hour) 12.1–24
    Gas Consumption (m3/hour) 9.9–26.1
    Temperature Monitor Yes
    Temperature Protection Yes
    Oil Tank 100L
    Feed Door 70x55cm
    Chimney 5Meter
    Chimney Type Stainless Steel
    1st. Chamber Temperature 800℃–1000℃
    2nd. Chamber Temperature 1000℃-1200℃
    Residency Time 2.0 Sec.
    Gross Weight 4500kg
    External Dimensions 230x130x155cm
  • Small Medical Incinerator TS30

    Small Medical Incinerator TS30

    Our range of incinerators cater for small to large scale animal cremation related businesses, such as poultry farms, cattle farms, sheep farms, pig farms, stables, kennels, testing laboratory, catteries, pet crematoriums.

    The incinerator burn waste in primary combustion chamber and burn the smoke from primary combustion chamber again to make sure environmentally friendly with no black smoke, smelless, reduce pathogenic bacteria infection.

    Items/Model TS30(PLC)
    Burn Rate (Average) 30 kg/hour
    Feed Capacity(Average) 60kg
    Control Mode PLC
    Combustion Chamber 330L
    Internal Dimensions 75x75x60cm
    Secondary Chamber 180L
    Smoke Filter Chamber Yes
    Feed Mode Manual
    Voltage 220V
    Power 0.5Kw
    Oil Consumption (kg/hour) 10.2–20
    Gas Consumption (m3/hour) 9.8–20
    Temperature Monitor Yes
    Temperature Protection Yes
    Oil Tank 100L
    Feed Door 55x50cm
    Chimney 5Meter
    Chimney Type Stainless Steel
    1st. Chamber Temperature 800℃–1000℃
    2nd. Chamber Temperature 1000℃-1200℃
    Residency Time 2.0 Sec.
    Gross Weight 3000kg
    External Dimensions 175x120x140cm
  • Small Medical Incinerator TS20

    Small Medical Incinerator TS20

    HICLOVER, Nanjing Clover Medical Technology Co.,Ltd, supply system solutions for medical environmental protection, animal and pet cremation engineering, other municipal solid waste incineration project.

    We supply single combustion chamber, double combustion chambers, three combustion chambers and multi-combustion chambers waste incinerators for laboratory, clinic, hospital, medical center, hygiene clinical waste destruction with medical disposable, biological waste, medical plastic waste, hazardous waste, red bag waste, needle disposal, gauze and bandages, sealed sharp containers, pathological waste, trace-chemotherapeutic wastes, etc.

    Items/Model TS20(PLC)
    Burn Rate (Average) 20 kg/hour
    Feed Capacity(Average) 40kg
    Control Mode PLC
    Combustion Chamber 210L
    Internal Dimensions 65x65x50cm
    Secondary Chamber 110L
    Smoke Filter Chamber Yes
    Feed Mode Manual
    Voltage 220V
    Power 0.5Kw
    Oil Consumption (kg/hour) 7.8–16.3
    Gas Consumption (m3/hour) 8–15.7
    Temperature Monitor Yes
    Temperature Protection Yes
    Oil Tank 100L
    Feed Door 45x40cm
    Chimney 3Meter
    Chimney Type Stainless Steel
    1st. Chamber Temperature 800℃–1000℃
    2nd. Chamber Temperature 1000℃-1200℃
    Residency Time 2.0 Sec.
    Gross Weight 2200kg
    External Dimensions 160x110x130cm
  • Small Medical Incinerator TS10

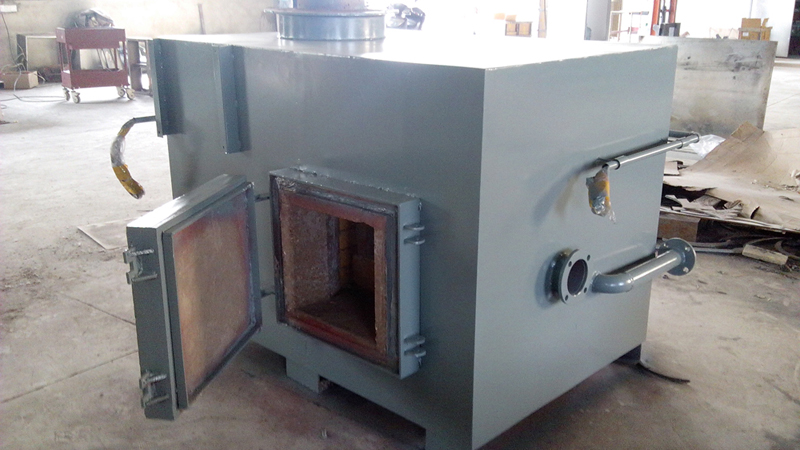

    Small Medical Incinerator TS10

    Items/Model TS10(PLC)
    Burn Rate (Average) 10 kg/hour
    Feed Capacity(Average) 20kg
    Control Mode PLC
    Combustion Chamber 100L
    Internal Dimensions 50x50x40cm
    Secondary Chamber 50L
    Smoke Filter Chamber Yes
    Feed Mode Manual
    Voltage 220V
    Power 0.5Kw
    Oil Consumption (kg/hour) 5.4–12.6
    Gas Consumption (m3/hour) 6.2–11.4
    Temperature Monitor Yes
    Temperature Protection Yes
    Oil Tank 100L
    Feed Door 30x30cm
    Chimney 3Meter
    Chimney Type Stainless Steel
    1st. Chamber Temperature 800℃–1000℃
    2nd. Chamber Temperature 1000℃-1200℃
    Residency Time 2.0 Sec.
    Gross Weight 1500kg
    External Dimensions 140x90x120cm



    TS model PLC incinerator is latest design for waste treatment, include medical waste, animal cremation and other solid waste. This equipment quality structural for kinds of site, like hospital, environmental department, animal cremation agencies, etc. CLOVER Incinerator supply updated models with dual combustion chamber and smoke filter chamber with refractory lines, and the combustion chamber temperature up to 1200 deg C.

    Items Specification
    Model TS10(PLC) / TS20(PLC) / TS30(PLC) / TS50(PLC) / TS100(PLC)
    Main Product List Double Combustion Chamber
    Smoke Filter Chamber
    PLC Mode Control Case
    Stainless Steel Chimney
    Italy oil/gas burner: 02 units
    Oil Tank (if oil fuel)
